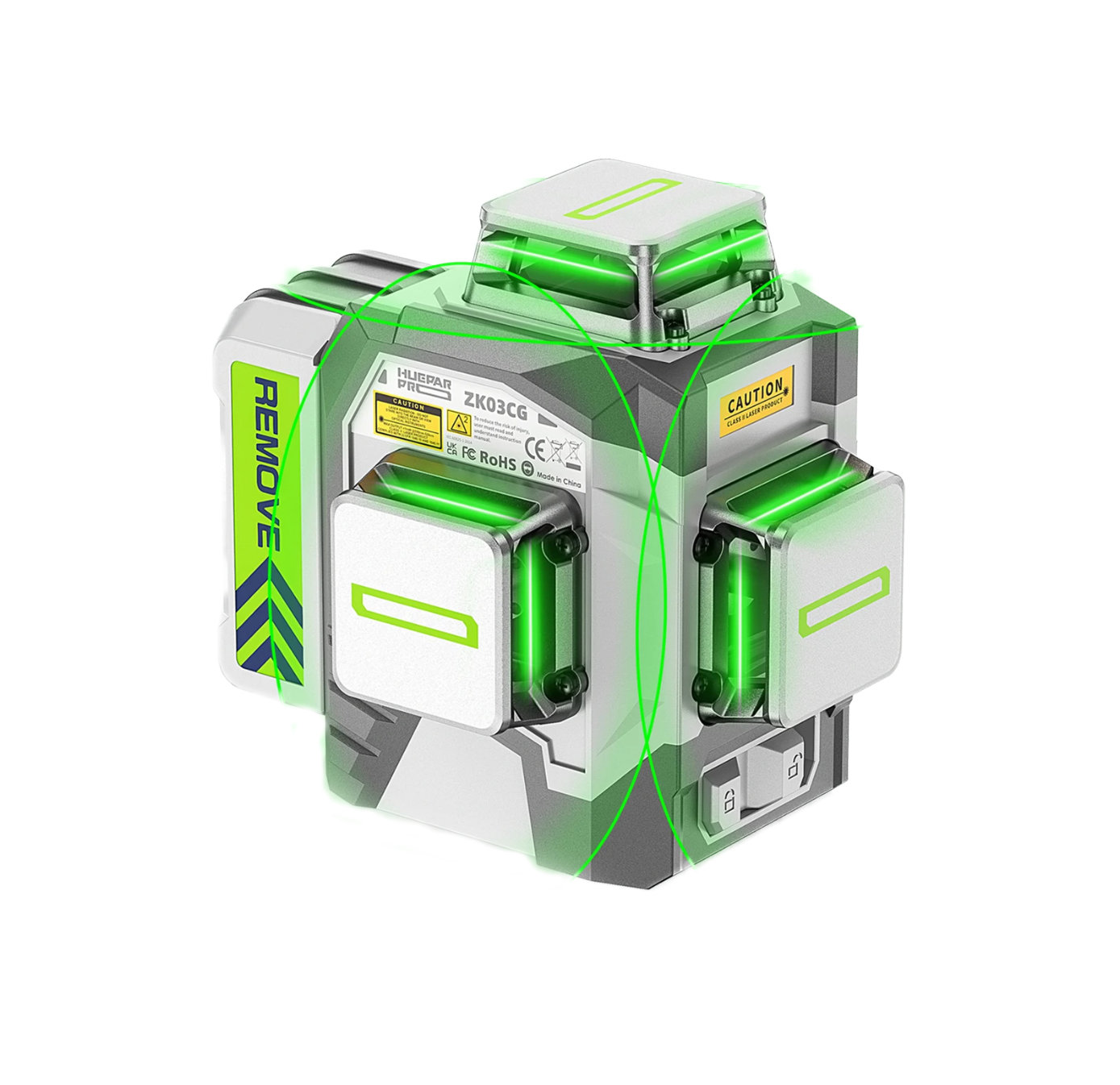

Huepar Pro ZK03CG-L 3D Cross Line Laser Level

The Huepar ZK03CG is a professional 3D laser level designed for precise room layout. It projects three 360° laser lines—one horizontal floor line and two vertical lines—allowing for simultaneous leveling, squaring, and plumbing across all surfaces.

Key Specifications

• High Accuracy: Engineered to tight tolerances of ±2mm at 10m, ensuring reliable results for high-precision trade applications.

• Visibility: Features Osram green beam technology, providing visibility up to 4x higher than standard red beams.

• Power: Powered by an 8000mAh Li-ion battery, supporting continuous operation for 8-10 hours.

• Durability: Rated IP54 for dust and water resistance with a rubberized housing for impact protection.

Features:

1. Hand-Tuned Precision

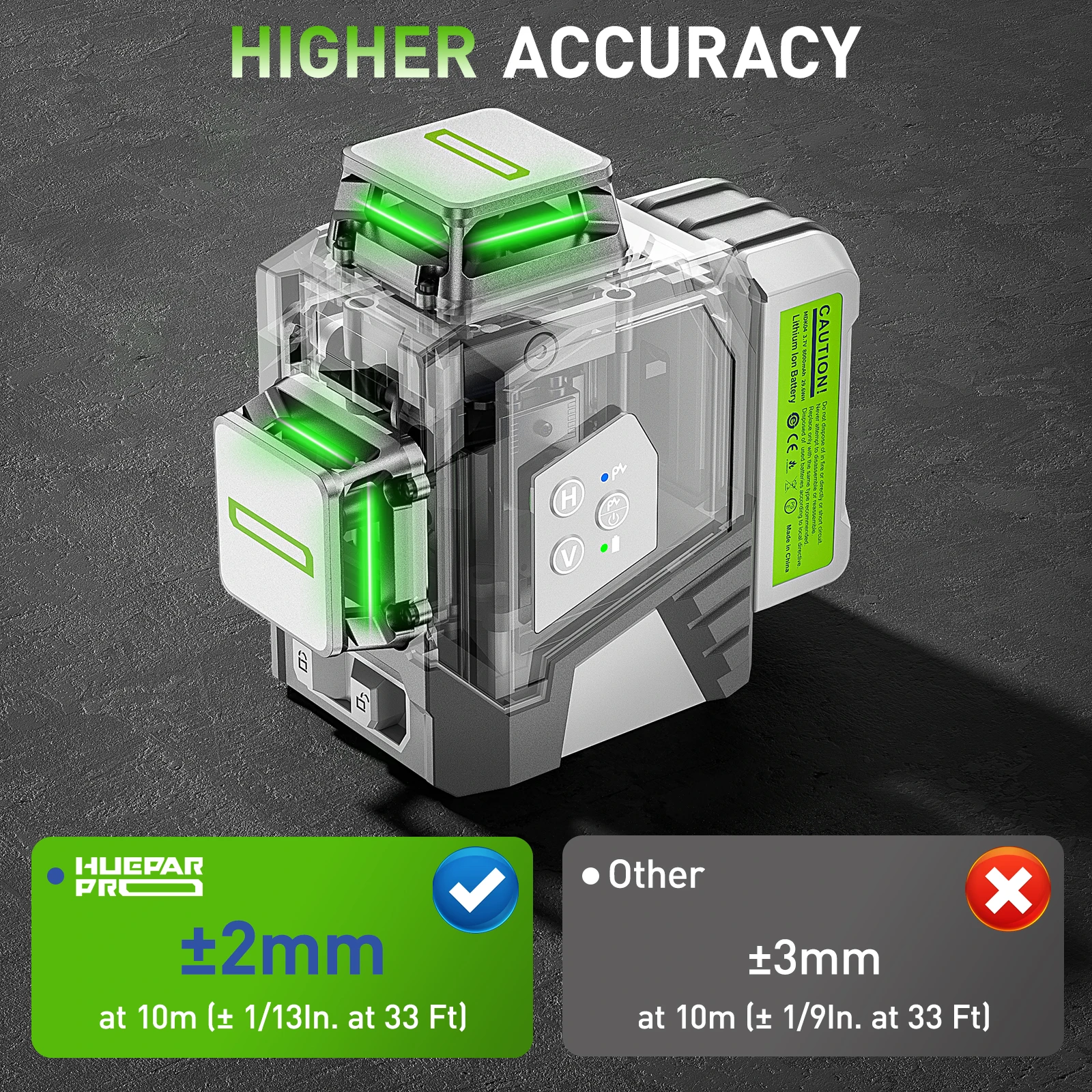

• High Accuracy Modules: Not all diodes are created equal. For this model, laser modules are hand-selected and tuned for superior precision, delivering a verified accuracy of $\pm$2mm at 10m. This is the tool for when tolerances matter.

2. Independent 3x 360° Layout

• Full Room Coverage: Projects one horizontal and two vertical 360° planes, covering the floor, wall, and ceiling simultaneously.

• Remote Control: Includes a remote control (working range up to 10m) that allows you to toggle individual lines on or off from across the room. It’s a massive time-saver for large layouts and saves battery by only powering the lines you need.

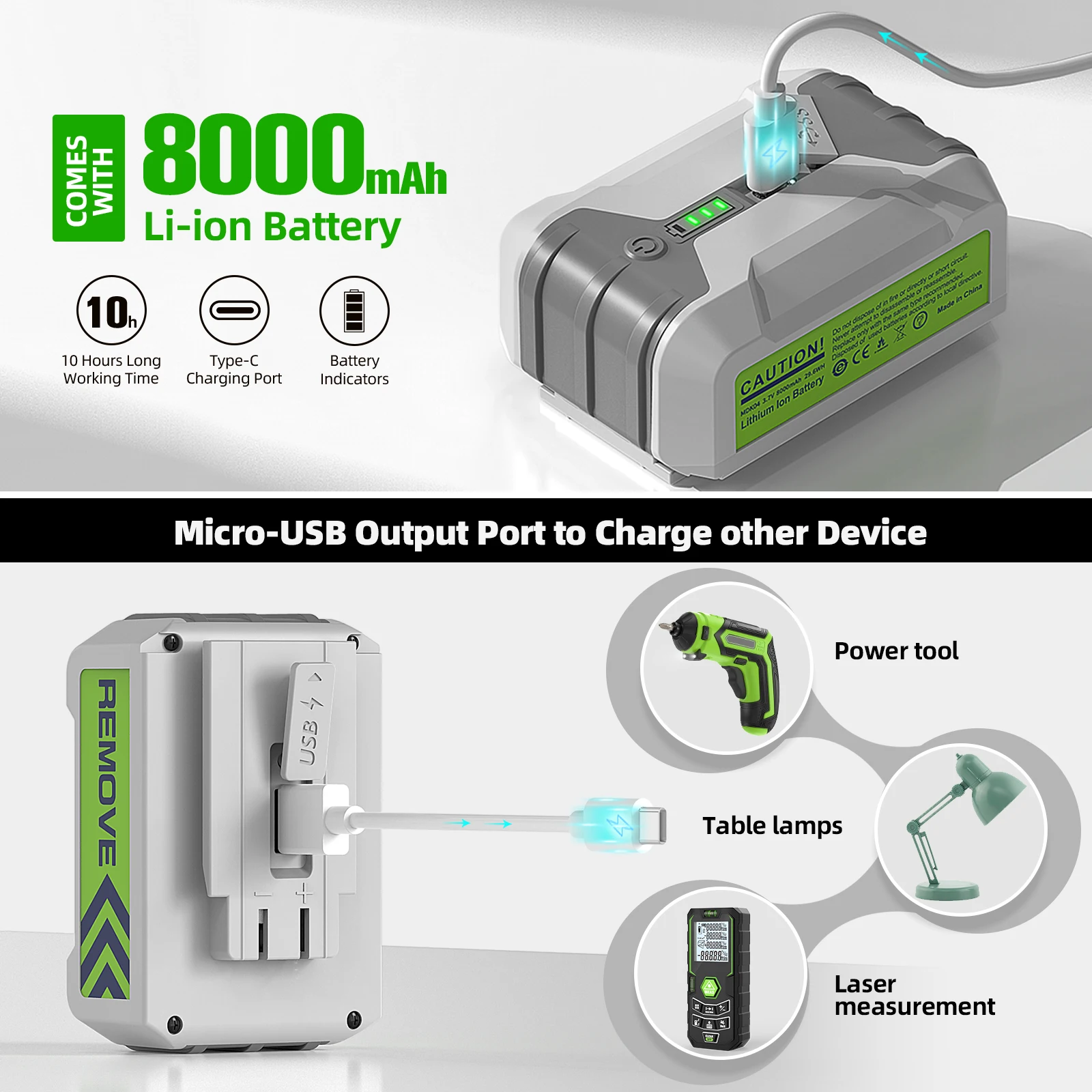

3. Massive All-Day Battery (with Power Bank Function)

• 10+ Hours Runtime: Powered by a huge 8000mAh Li-ion battery, this unit will run for over 10 hours with all three lasers firing.

• Reverse Charging: The battery features a USB port that acts as a power bank, allowing you to charge your phone or laser distance meter directly from the tool.

• Flexible Charging: Features a Type-C port, so you can charge it via a car charger, wall plug, or laptop. Indicators clearly show remaining power so you’re never caught short.

4. Smart Pendulum System

• Auto-Leveling: Unlocking the pendulum activates self-leveling mode. If the unit is outside the $\pm$4° range, it will beep and flash to alert you instantly.

• Manual Lock: Lock the pendulum to project rigid lines at any angle—essential for staircases, raking ceilings, or custom balustrades.

5. Outdoor Pulse Mode

• Extended Range: Essential for bright NZ job sites. Activating Pulse Mode dims the beam slightly to communicate with a Huepar Line Laser Receiver (sold separately), extending your working range up to 60m (200ft) outdoors.

6. Versatile Mounting Options

• Magnetic Bracket: Includes a heavy-duty, 180° pivoting magnetic bracket. It grabs onto steel studs or tracking securely, letting you position the laser exactly where you need it.

• Tripod Ready: Features a standard 1/4″-20 thread for compatibility with almost all standard tripods and mounting poles.

7. Site-Tough Durability (IP54)

• Built for the Trade: Rated IP54 for resistance against dust and water splashes. The housing is engineered with over-moulded rubber for shock resistance, tested to withstand drops from 1.2m, making it robust enough for daily transport and active construction sites.

Package Contents:

WARNING: Avoid direct exposure of the laser beam to the eyes.

We ship these units direct from our international warehouse to keep the price down for you. Expect your new tool to land at your doorstep in roughly 7–14 days. It’s worth the short wait for a tool this good at this price point.
