Huepar BOX 1G – Cross Line Green Laser Level

The entry-level choice for Kiwi tradies and DIYers

Not everyone needs three or four 360° planes. Sometimes you just need a simple, reliable cross-line that projects forward – and that’s exactly what the Huepar BOX 1G delivers.

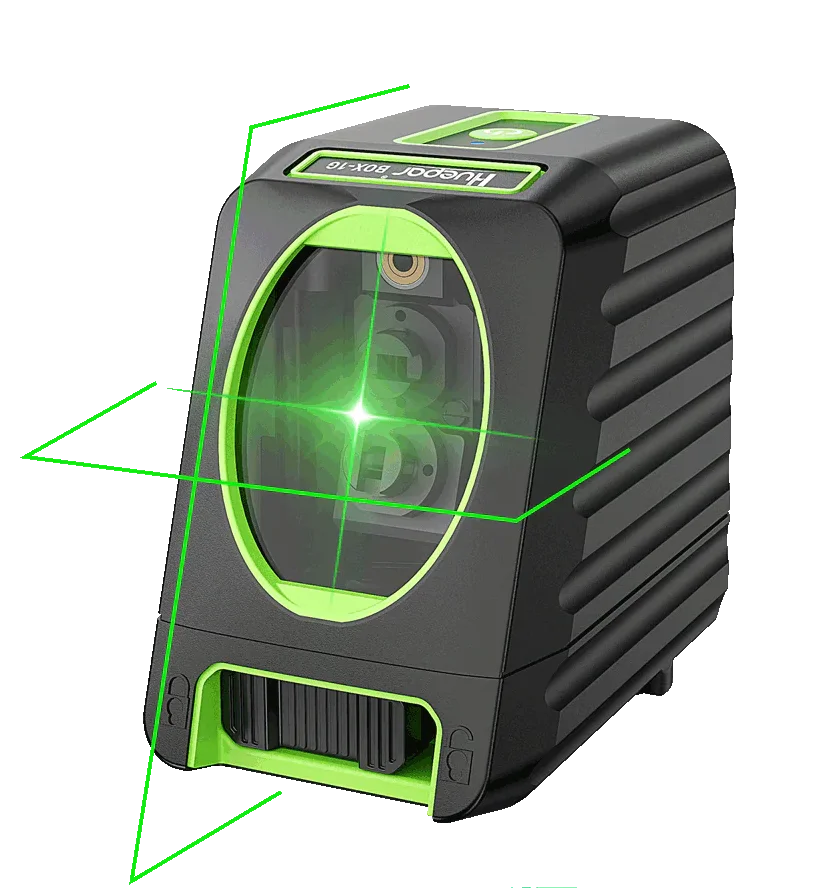

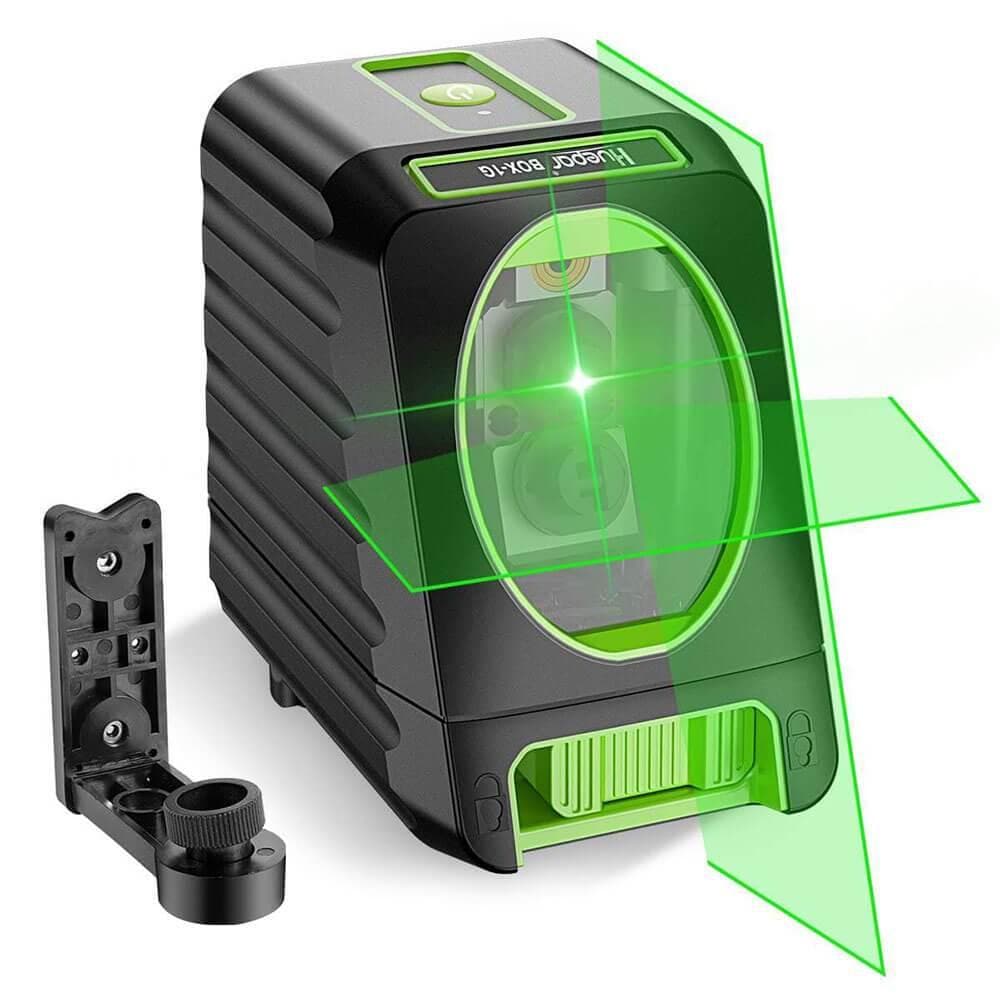

It projects one horizontal and one vertical green line – a crisp, bright cross – straight ahead onto your wall, floor or ceiling.

Low cost. Simple. Effective.

• Affordable entry point – The most budget-friendly way to get a genuine Huepar green laser on your tool belt. Perfect for tradies who need a reliable 2 line simpe laser for those specific tasks, or for the DIYer that wants to tackle those weekend jobs.
• Ultra-bright green laser – Powered by an OSRAM green laser diode, the BOX 1G delivers visibility up to 2× brighter than red lasers. You’ll see your lines clearly in bright daylight, near windows, or in well-lit workshops – no squinting required.
• ±2mm accuracy at 10 metres – The same precision as much more expensive models. Perfect for tiling, picture hanging, door and window installation, cabinetry, shelving, and more.
• Wide fan angles – Projects a 130° horizontal line and a 150° vertical line, giving you excellent coverage across walls, floors and ceilings without needing to reposition constantly.

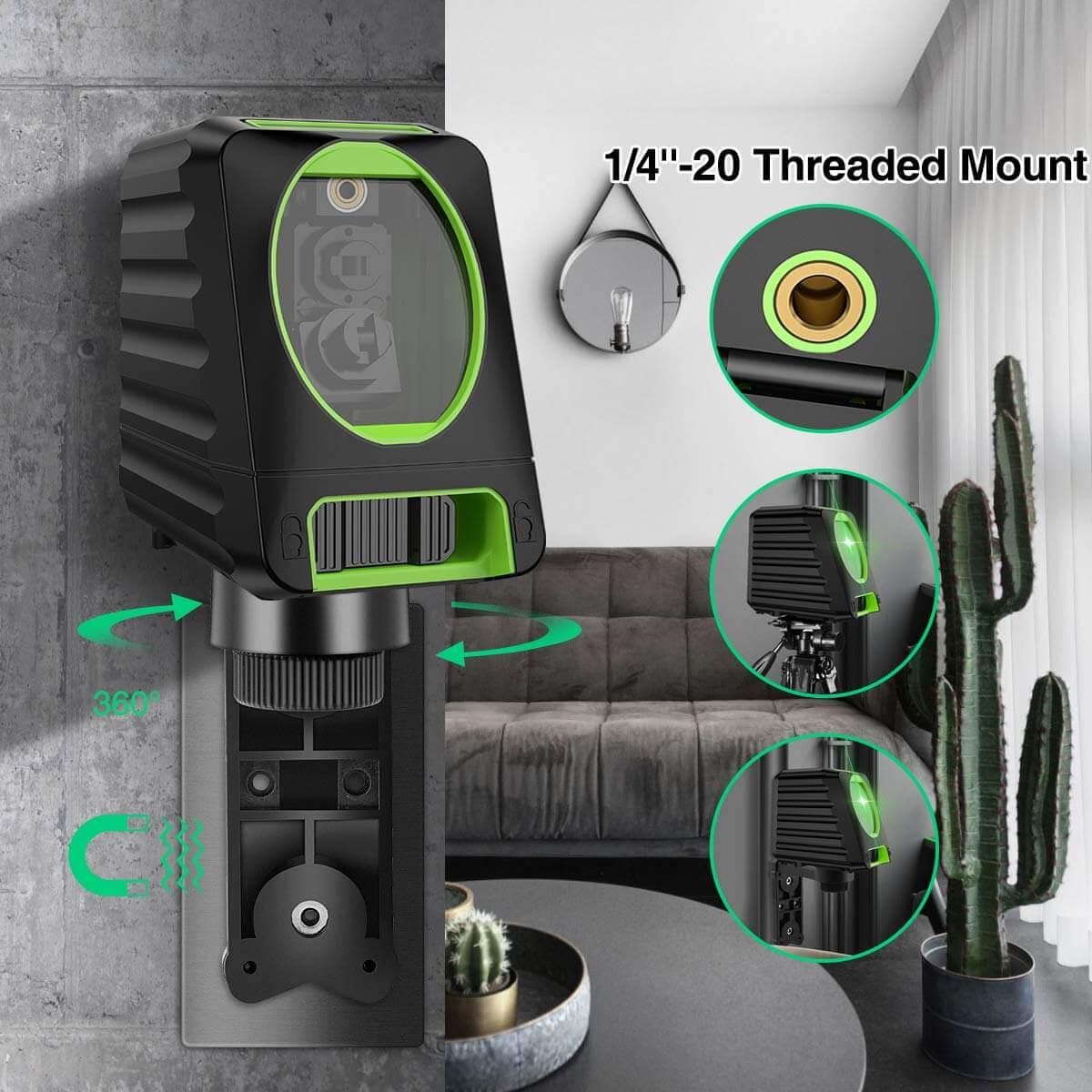

• 360° magnetic pivoting base – The included L-shaped magnetic bracket attaches firmly to any metal surface and pivots a full 180°, giving you flexible mounting options on steel studs, columns, brackets or any ferrous surface. Plus, the standard 1/4″-20 thread means you can mount it on any tripod or laser pole.
• IP54 rated – Dustproof, waterproof and shockproof. The TPR soft rubber housing adds extra protection against drops and knocks, so it’ll survive the realities of a busy job site.

Three simple modes

• Self-levelling – Unlock the pendulum and the laser automatically levels itself within 4°. The beam flashes if you’re outside the range – simple and foolproof.
• Manual mode – Lock the pendulum and project lines at any angle – perfect for stair stringers, pitched roofs, or off-level alignment.
• Pulse mode – Pair with a Huepar laser receiver (sold separately) to extend your working range up to 50-60 metres outdoors in full sunlight.

One-button operation

No menus, no button-mashing. Each press of the power button cycles through horizontal, vertical, and cross-line mode. That’s it. Get the line you need and get on with the job.

Runs on AA batteries

Powered by 4 AA batteries (included), delivering up to 5 hours of continuous use with all beams on. Use high-capacity rechargeable AA batteries above 1500mAh for even longer runtime.

Why choose the BOX 1G?

Because you don’t always need 360° planes. You just need a reliable, accurate cross-line that points forward, does the job, and doesn’t cost a fortune. The BOX 1G is the perfect entry point into the Huepar range – simple, effective, and built to last.

NZ Stock arriving 3/8/2026

Need more info? Get in touch – we’re here to help.
